L10

Product Description

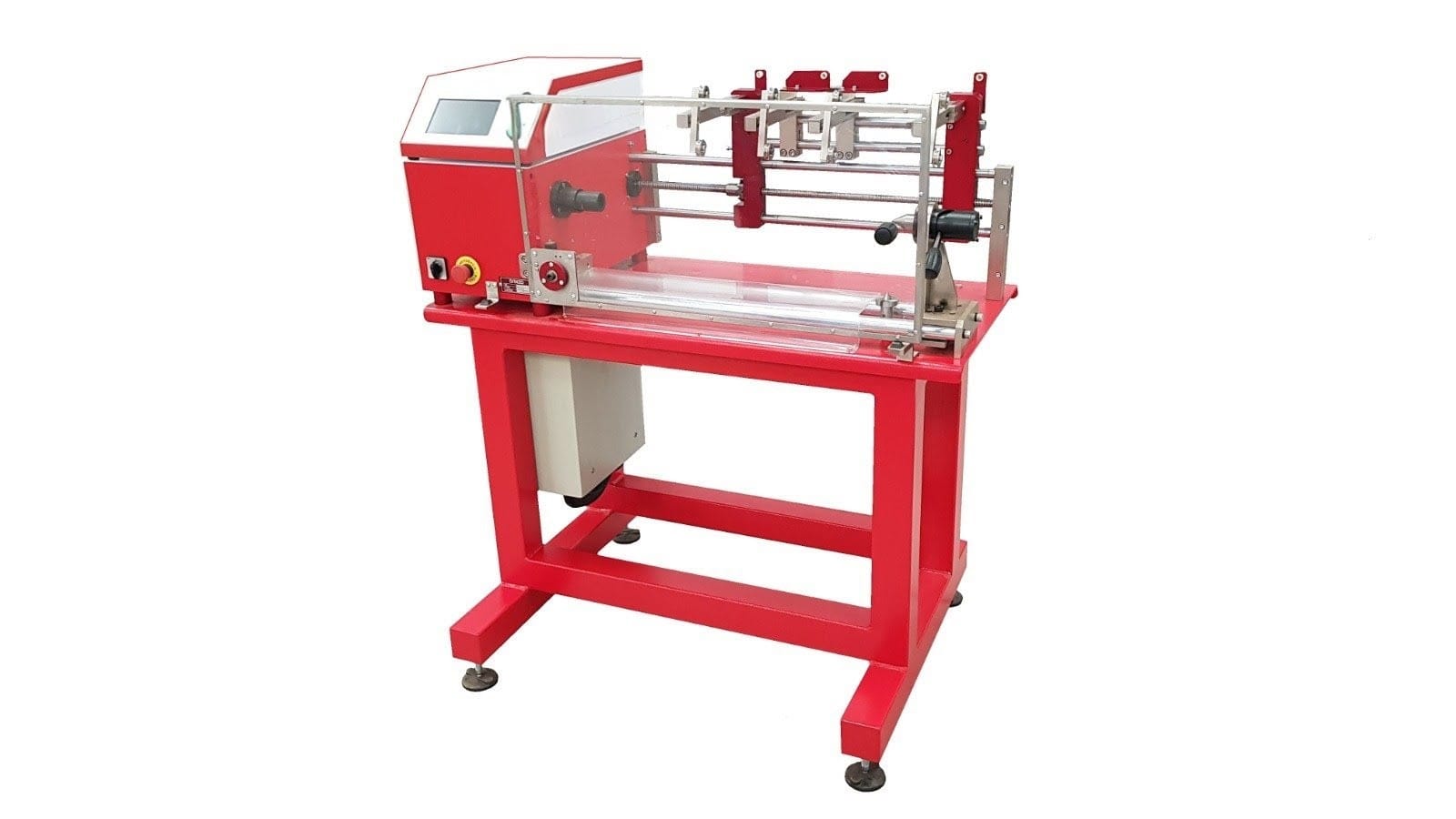

This machine allows the execution of a wide range of simple or complex coils. It has a simple and flexible CNC control added to a strong and accurate mechanics.

Lateral operation of this model is a highly productive alternative for coils where an extensive manpower is required. Machine executes coils of extreme characteristics with diameters from 0.2 up to 180 mm and wire gauges from 44 (0.05 mm) up to 10 AWG (2.5 mm).

This equipment is ideal for companies requiring a quick setup in medium to small production volumes.

• CNC command controls main axis (spindle) and guide axis
• Drag-and-drop programming has many features for the execution of complex coils, as: coils with taps, with variable geometry, separated by sections or with insulated layers. It also permits double or triple wire coil winding.
• Programs can be stored locally or in a file server compatible with Windows share or SMB.
• Remote access via the internet for diagnosis and software and firmware updates.
• Spool speed, acceleration and geometry can be altered during operation
• It control accessories like hot air guns or compressed air tools

PRODUCTION APPLICATIONS

Transformers, X ray transformers, large coils, air cored coils, etc.
